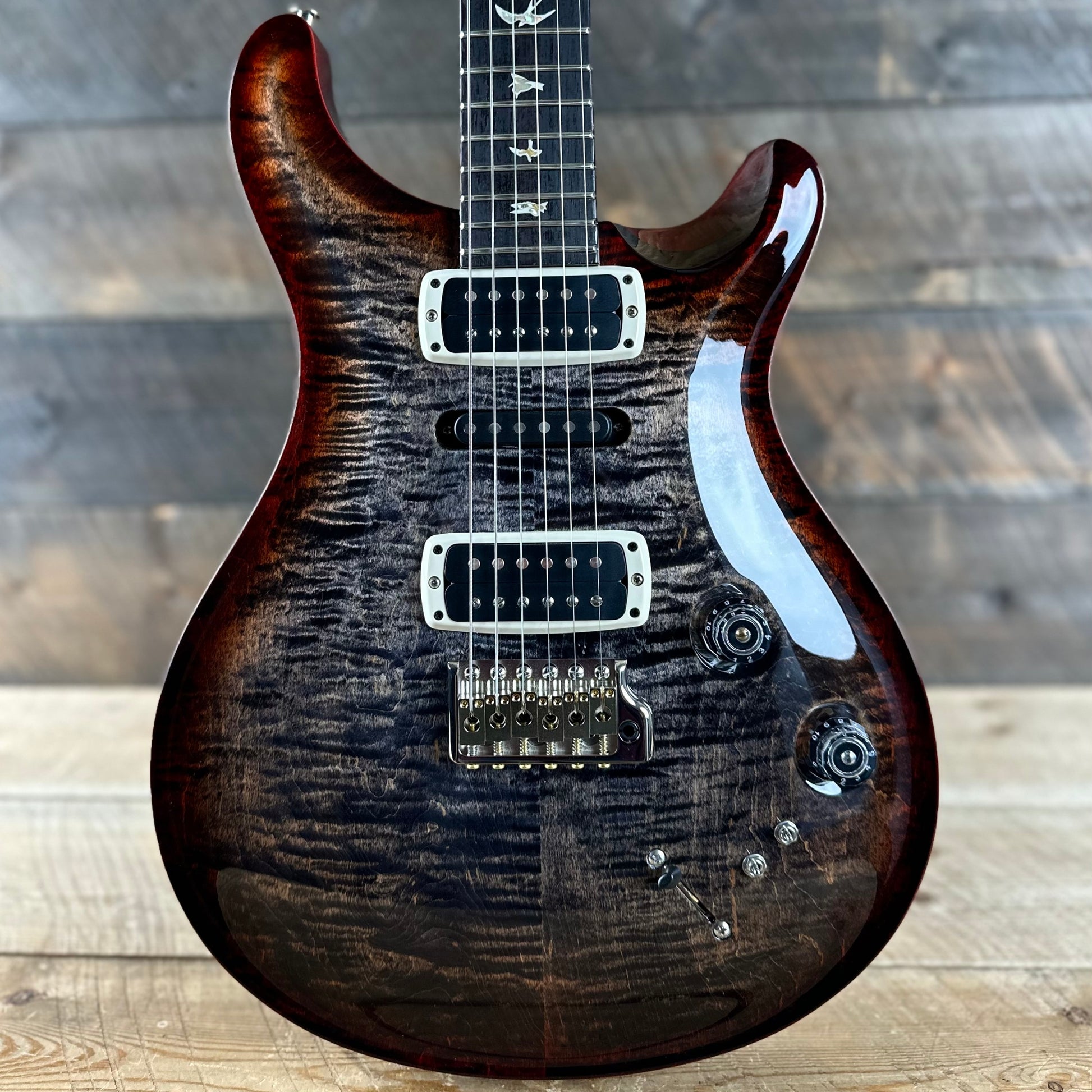

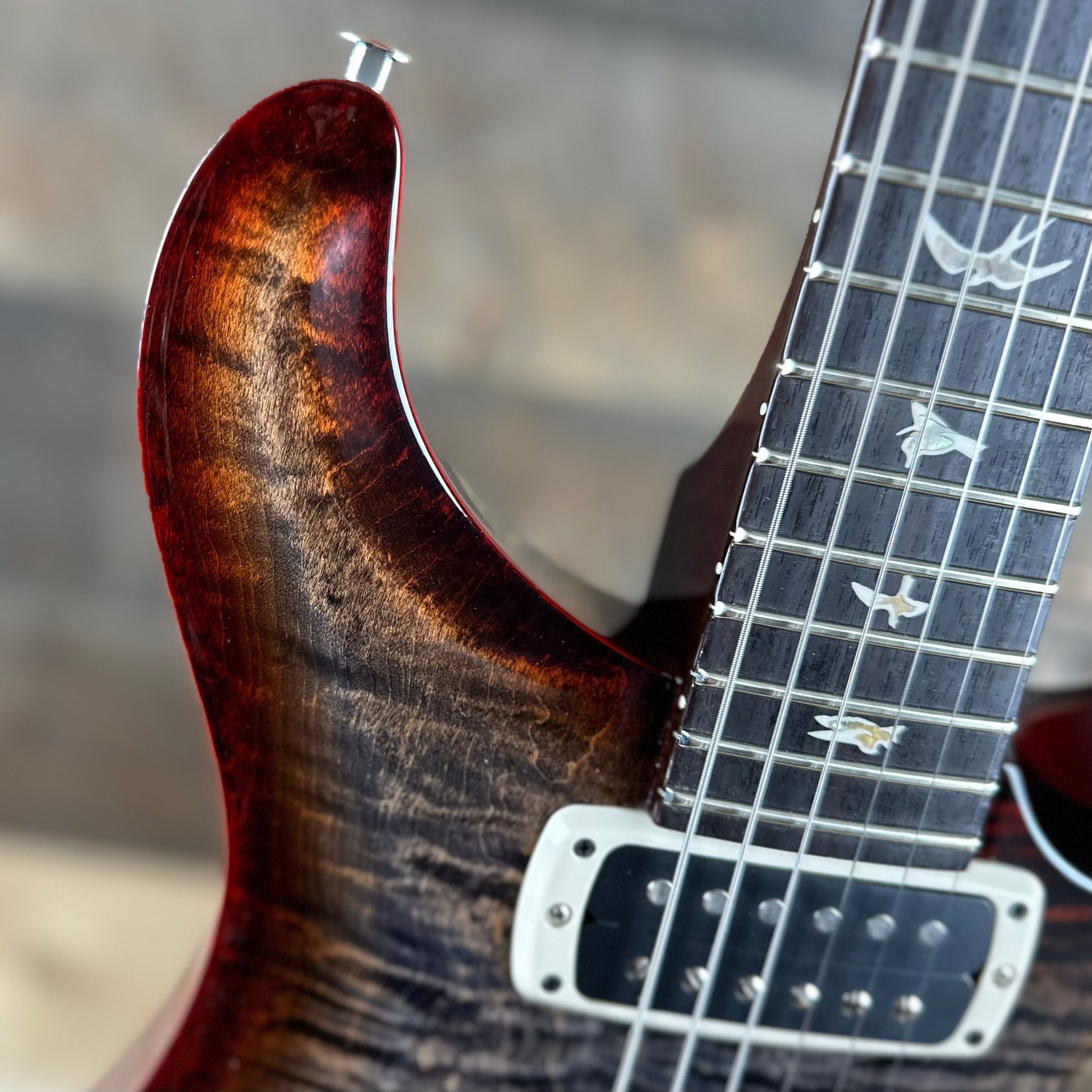

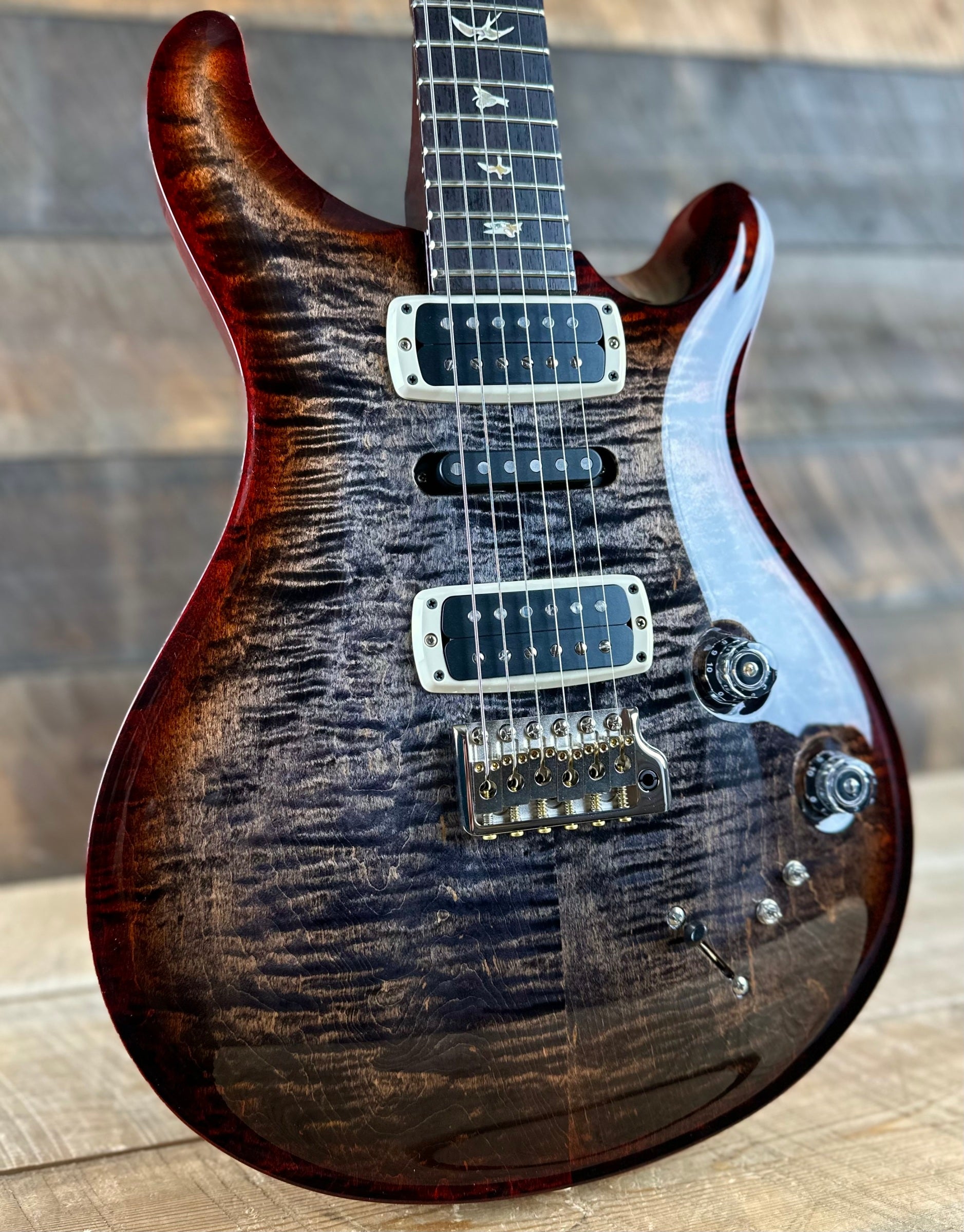

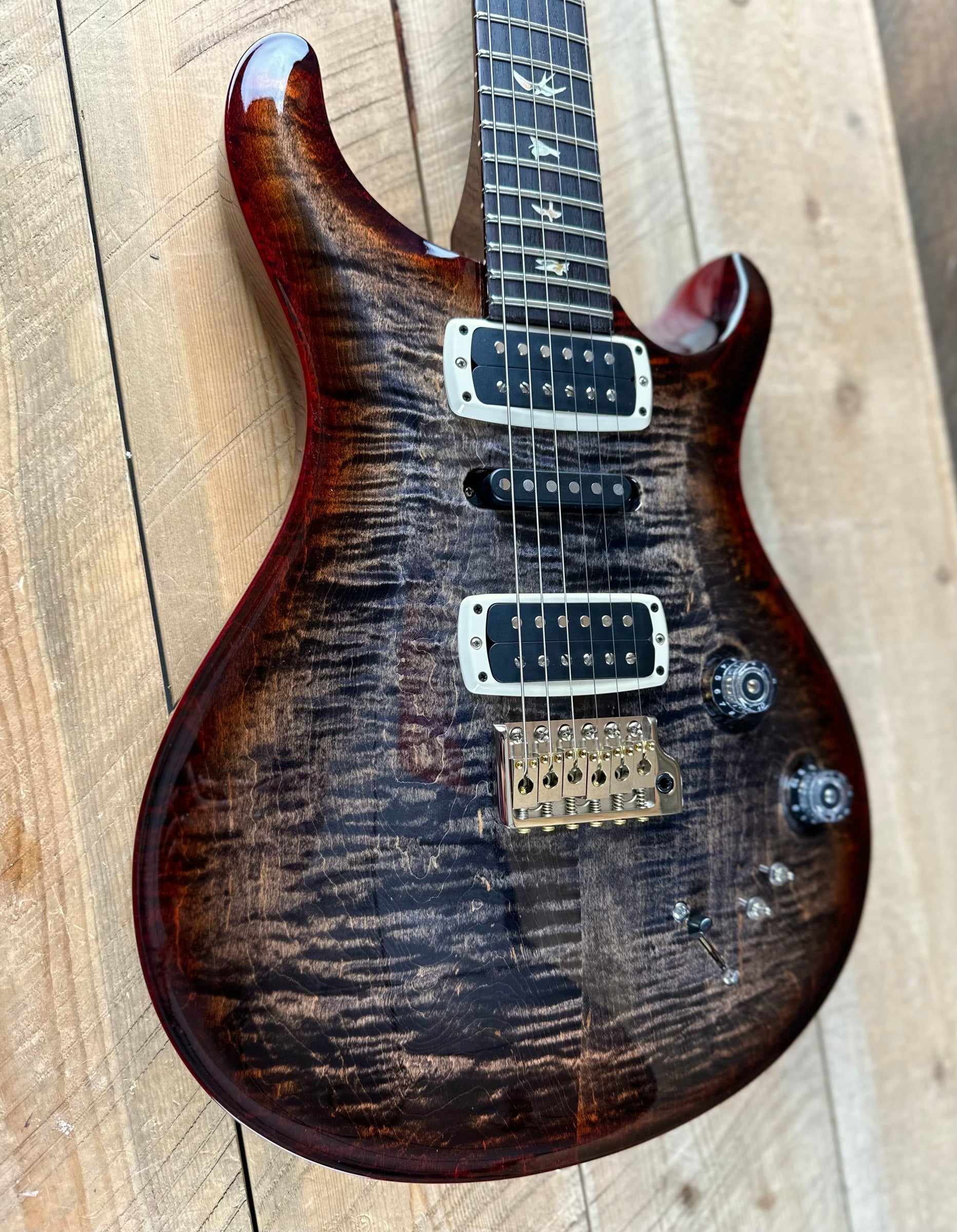

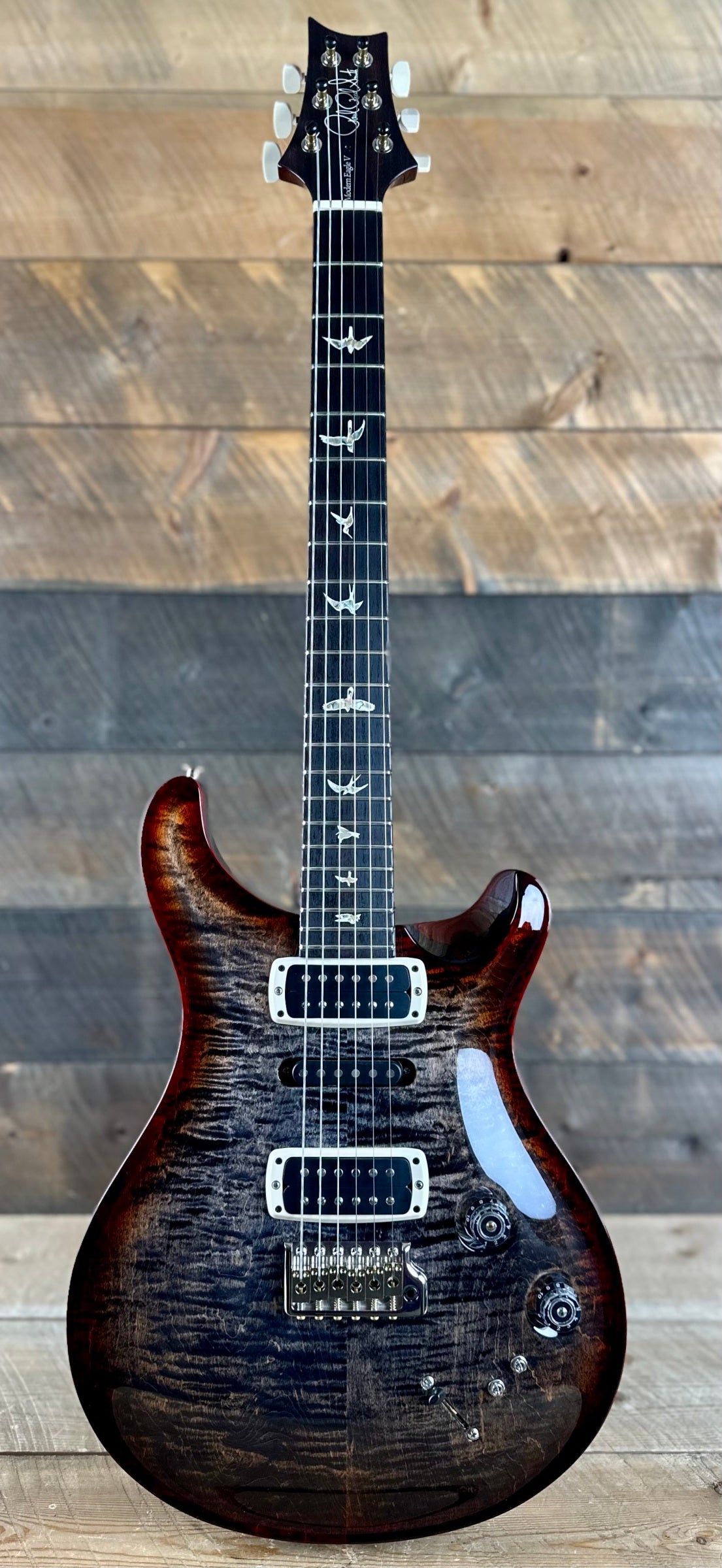

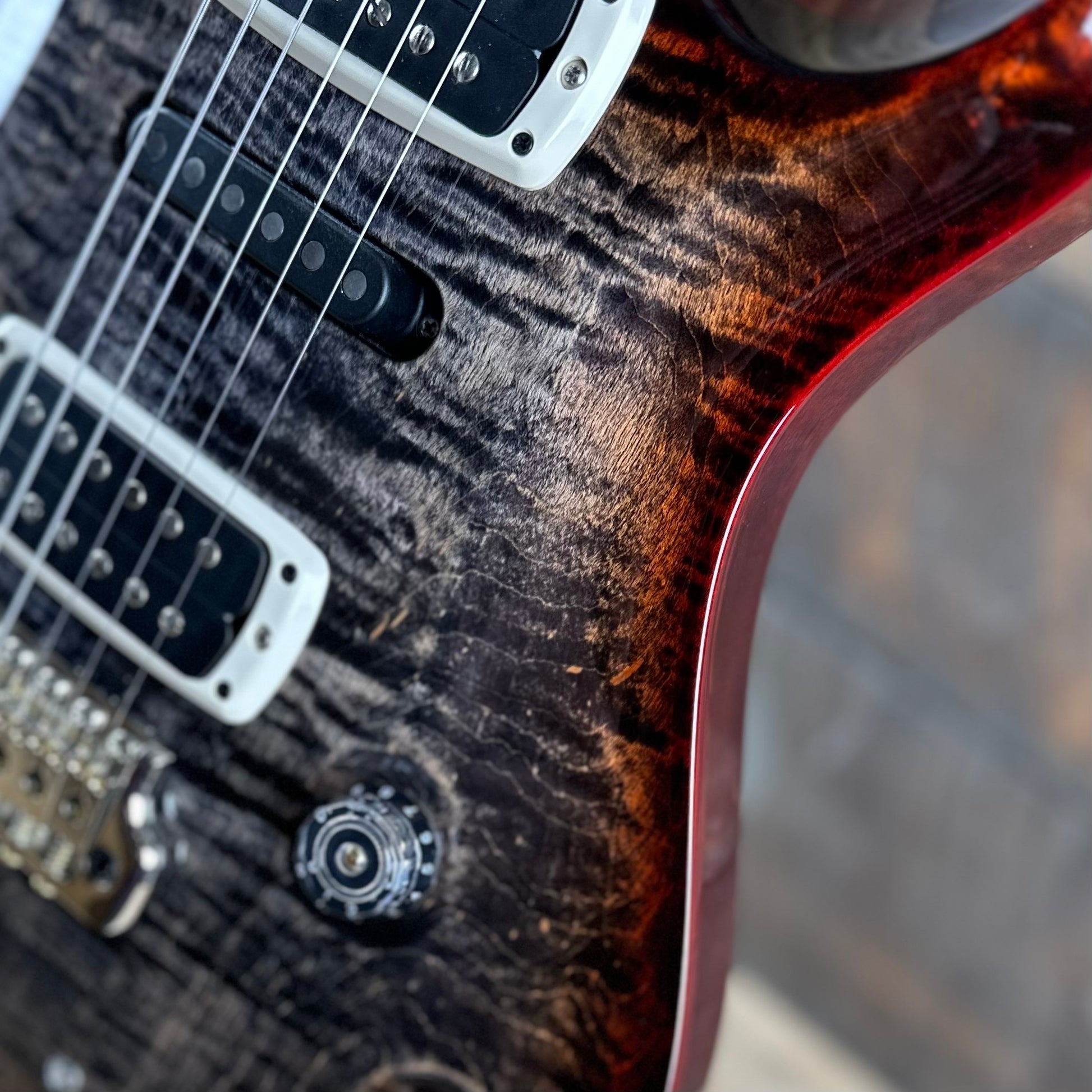

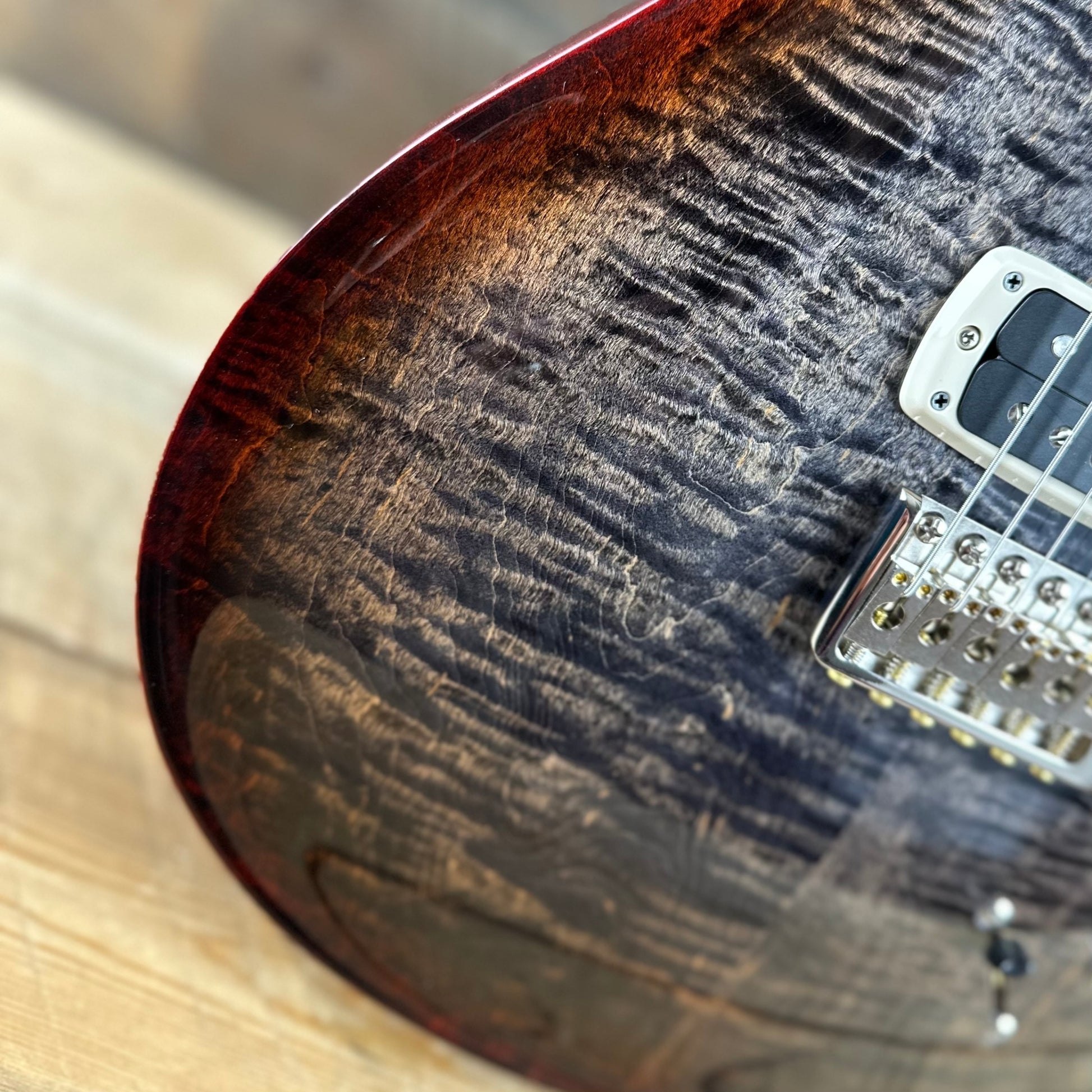

This Modern Eagle V has such a beautiful flame top with tight, curly flames that it almost quilts! The Charcoal Cherry Burst finish is the perfect complement.
Innovation Realized

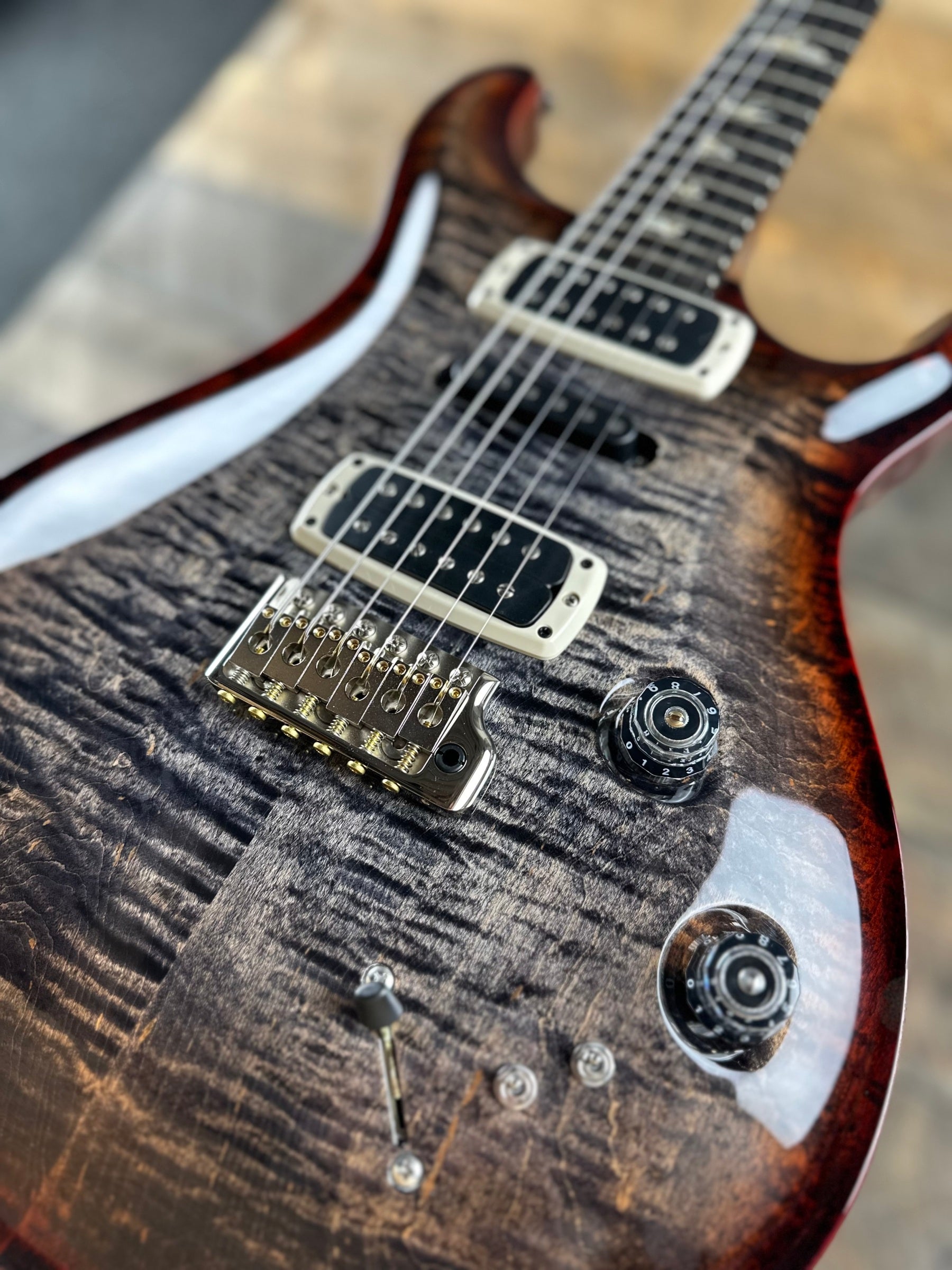

The Modern Eagle V is an innovative instrument that offers highly musical tones for both recording and playing live. Utilizing a hum/single/hum (five-coil) pickup layout and unique electronics configuration, the Modern Eagle V gives players a vast array of tones in one guitar. The 5-way blade switch selects the pickups in intuitive groupings: treble, treble and middle, middle, middle and bass, and bass. There is a single volume and a push/pull tone control that activates both humbuckers when engaged; this allows players to access all three pickups simultaneously. Finally, the mini toggles allow players to individually tap the humbucker coils, for additional single-coil sounds. This electronics design puts a whole set of classic and new tones at your fingertips. Additional appointments include a maple top and mahogany back, a 22 fret, 25" scale length, Pattern mahogany neck with rosewood fretboard, bone nut, and PRS patented Gen III tremolo. "Modern Eagle models have always been built to stand up to history while celebrating tonewoods and the discovery of new tones. The Modern Eagle V is a sophisticated instrument not only in its craftsmanship but in its electronic and mechanical design," said Paul Reed Smith. "We've refined the pickup tones and are pleased to now add it to the Core lineup." For 2024, PRS Guitars is updating the tuning machines on many of our Core guitars. While, aesthetically, our new Wing buttons are designed to echo the 12th fret bird wingspan design, they were first and foremost designed for tonal reasons all the way back in 1982. Because these buttons are lighter weight than their metal predecessors, they are subtracting less energy from the vibrating strings, thus helping the guitar ring longer and at a more musical note.
Modern Eagle V Specifications
Body:
Body Construction:
Solidbody
Top Wood:
Maple

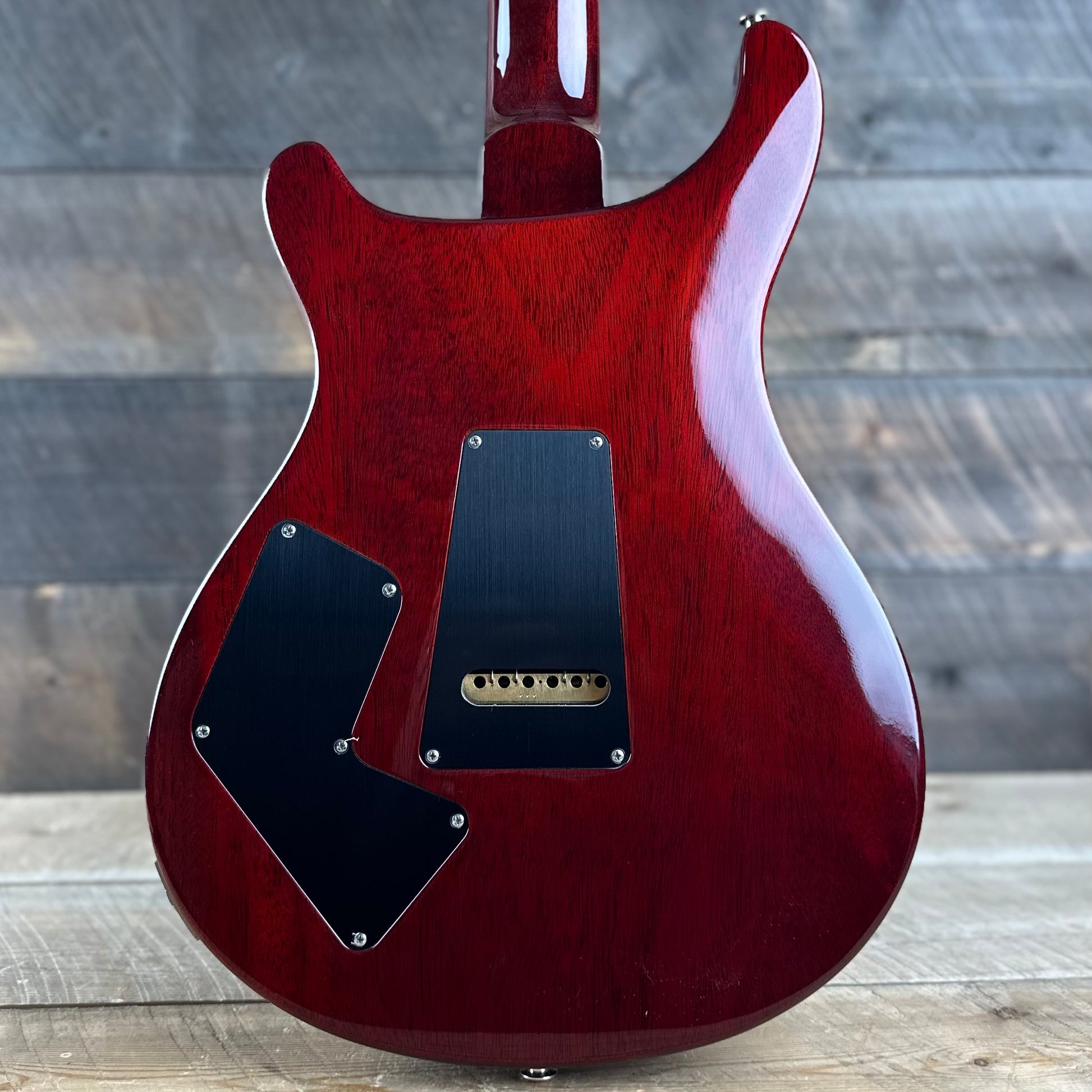

Back Wood:
Mahogany
Top Carve:
Violin
Neck:
Number of Frets:
22
Scale Length:
25"

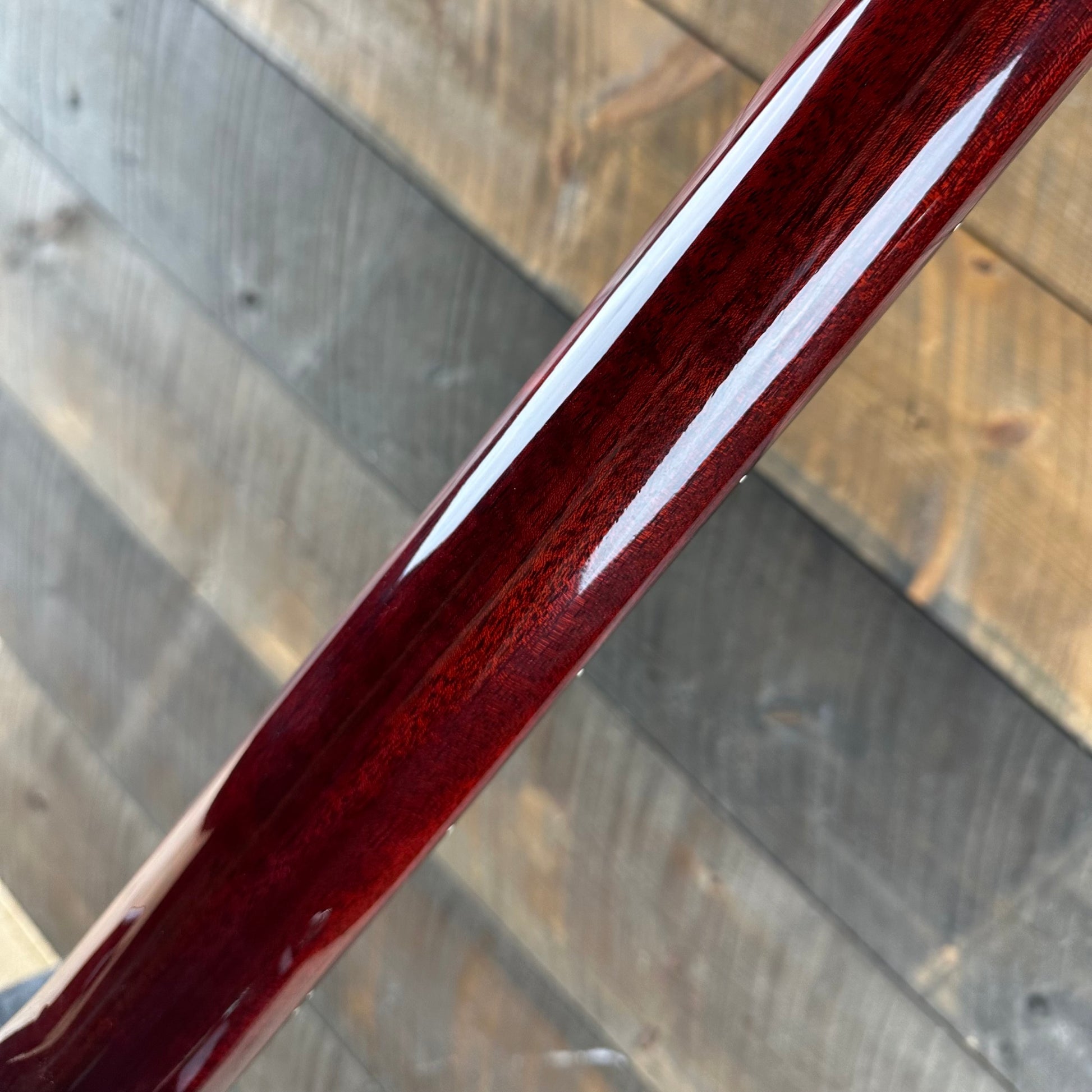

Neck Wood:
Mahogany
Neck Construction:
One-Piece
Truss Rod:
PRS Double-Acting
Neck Shape:
Pattern
Neck Depth at 1st Fret:
7/8"
Neck Depth at 12th Fret:
61/64"
Neck Width at Nut:
1 11/16"
Neck Width at Body:
2 1/4"
Fretboard Wood:
Rosewood
Fretboard Radius:
10"

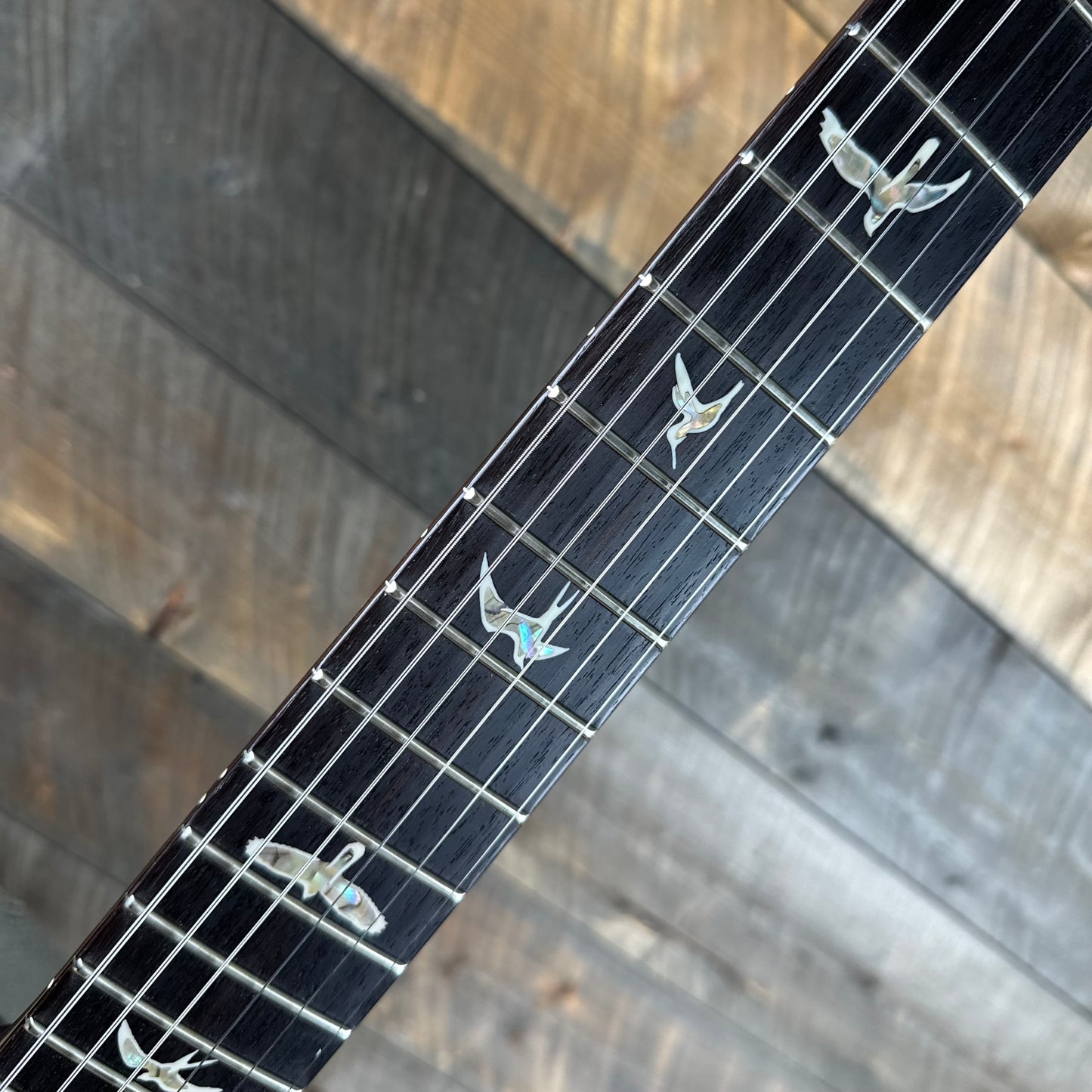

Fretboard Inlay:
Birds

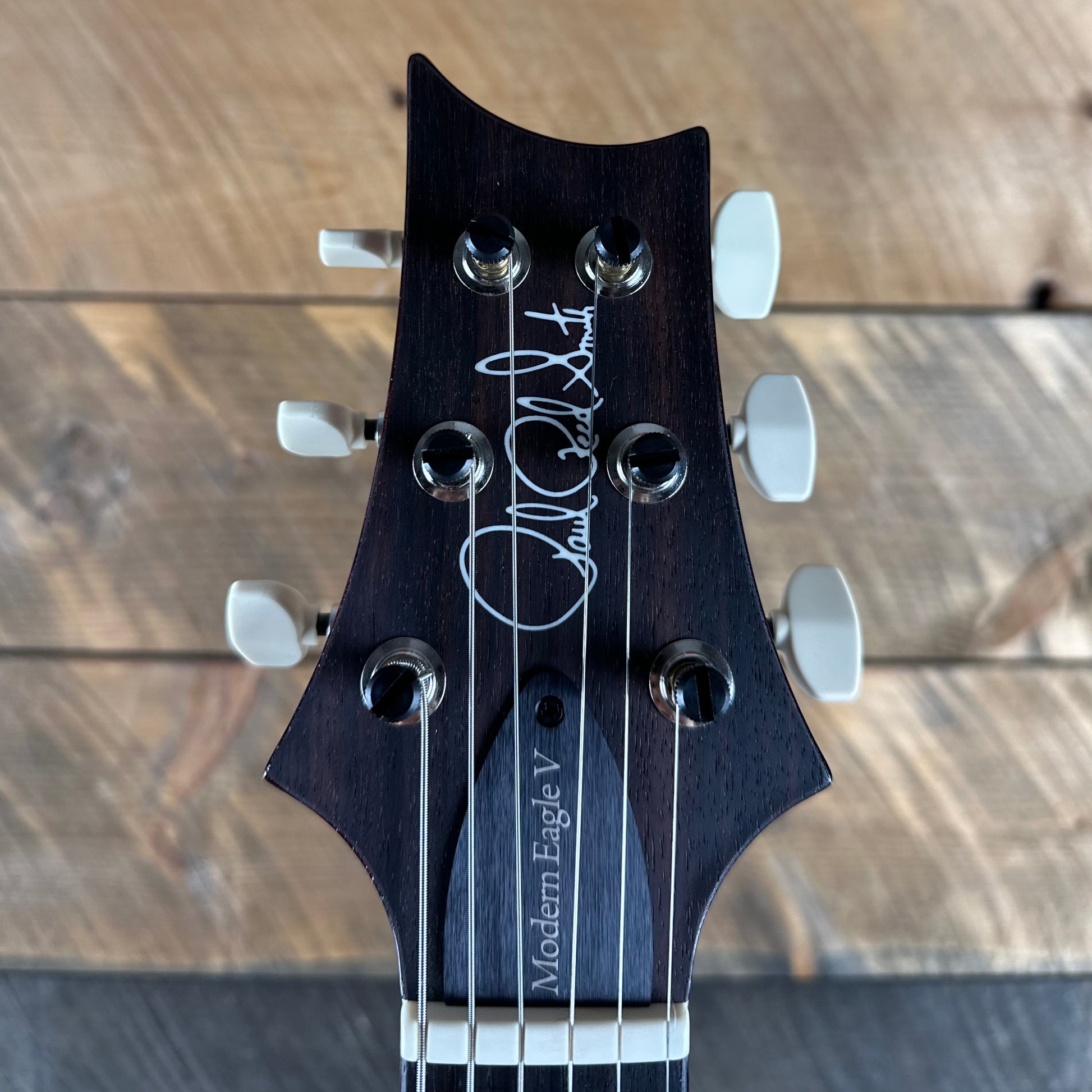

Headstock Logo:
Signature, Inlaid
Neck/Body Assembly:
Neck/Body Assembly Type:
Set
Finish:
Finish Type:
High-Gloss Nitro
Hardware:
Bridge:
PRS Patented Tremolo, Gen III

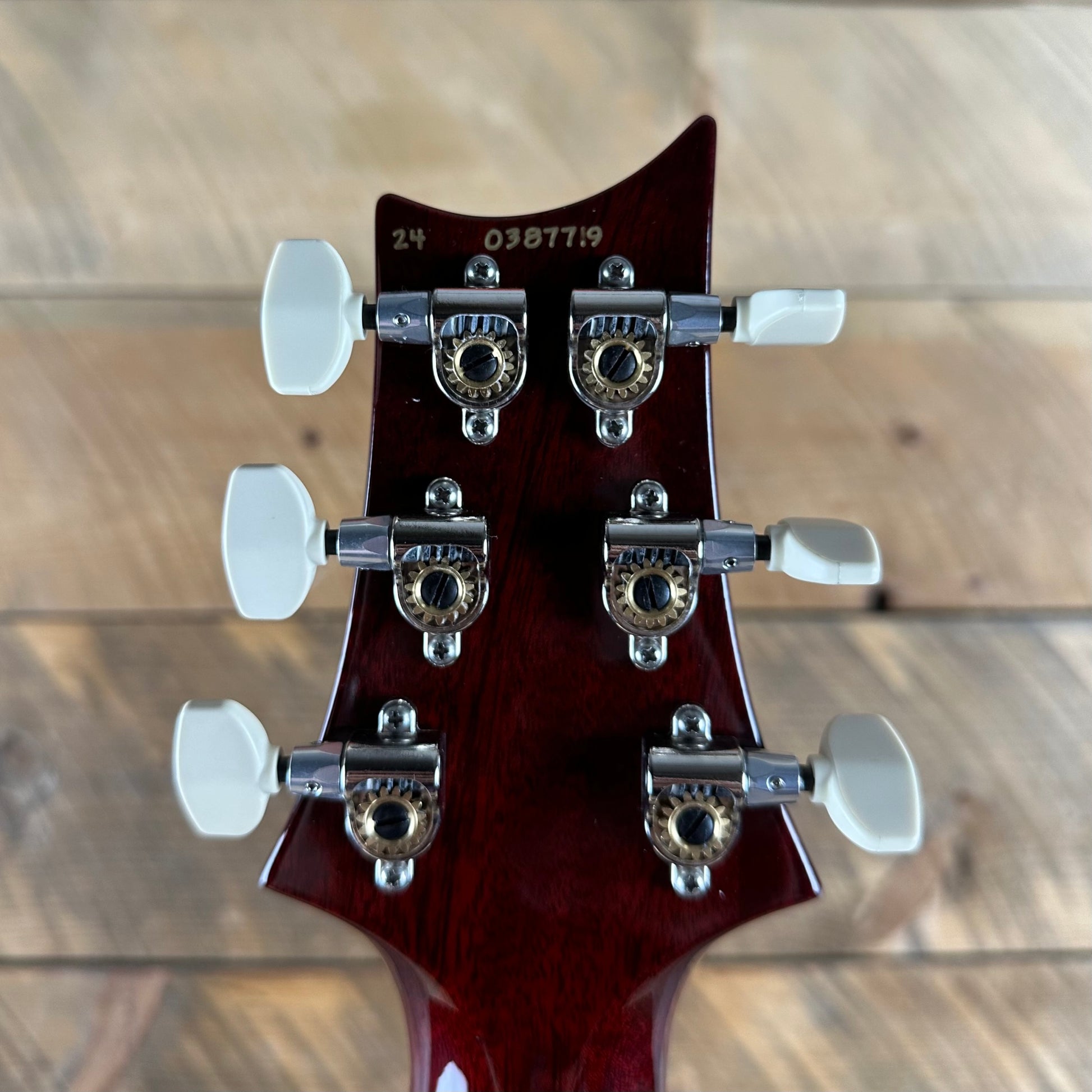

Tuners:
PRS Phase III Locking Tuners with Wing Buttons
Hardware Type:
Nickel
Nut:
Bone
Truss Rod Cover:
"Modern Eagle V"

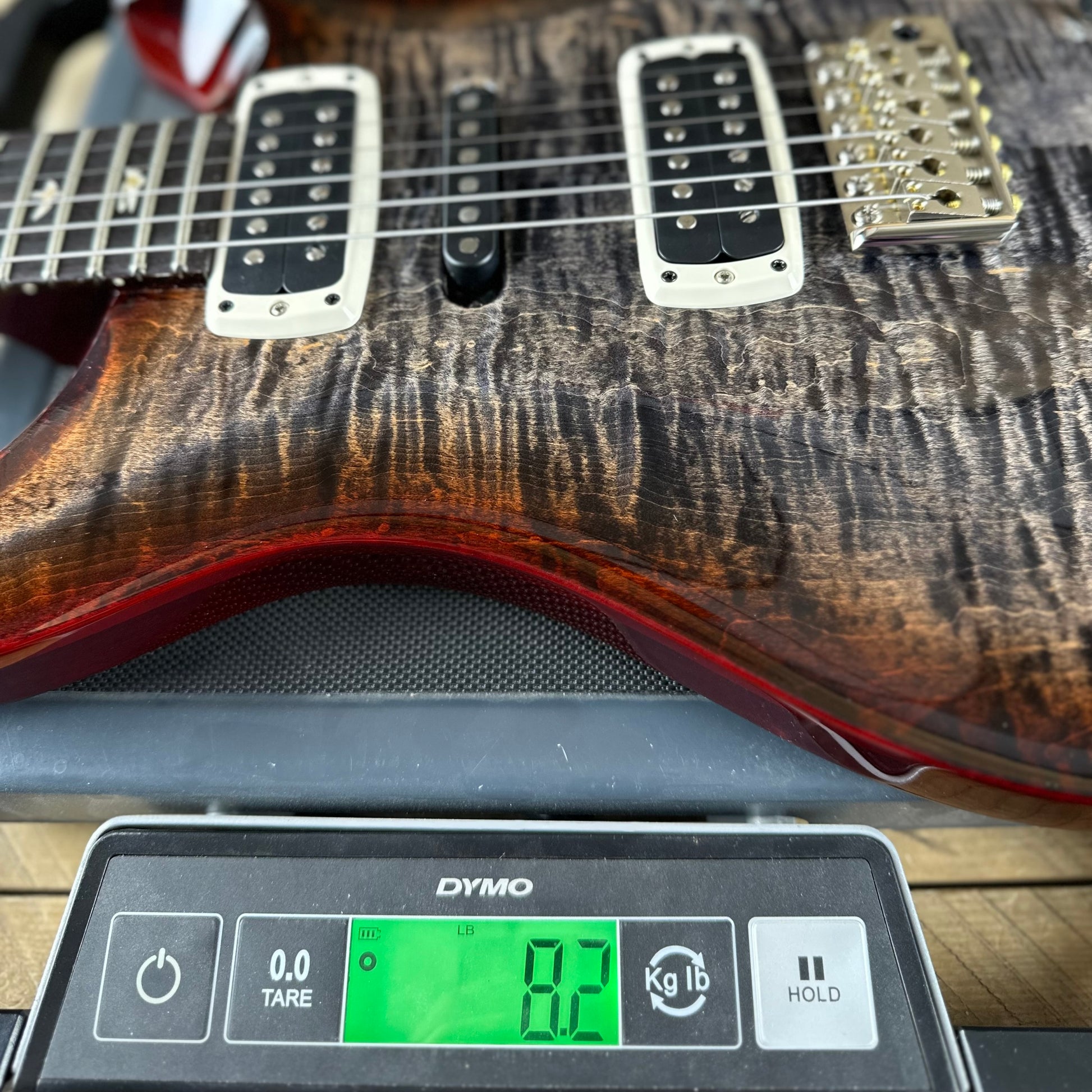

Electronics:
Treble Pickup:
TCI
Middle Pickup:
NS-01
Bass Pickup:
TCI
Controls:
Volume and Push/Pull Tone Controls with 5-Way Blade Pickup Switch and Two Mini-Toggle Coil-Tap Switches
