- Specifications
- Nominal Input Level
- GUITAR IN 1,2: -10 dBu (Adjustable)
RETURN: -10 dBu - Input Impedance
- GUITAR IN 1,2: 10 M ohms
RETURN: 220 k ohms - Nominal Output Level
- SEND: -10 dBu
LINE OUT L/PHONES, R/MONO: -10 dBu
XLR OUT L, R: -10 dBu - Output Impedance
- SEND: 1 k ohm
LINE OUT L/PHONES, R/MONO: 44 ohm
XLR OUT L, R: 600 ohms - Mode
- Manual
Memory - Number of Memory
- 10
- Effects
- ACOUSTIC RESONANCE (3Type)
COMP (2Type)
4 BAND EQ, LOW CUT
BOOST
CHORUS (3Type)
DELAY (3Type)
REVERB (3Type)
ANTI-FEEDBACK (REDUCTION, NOTCHx2) - Phrase Loop
- 80 sec
- Display
- 7 segments, 2 digits LED

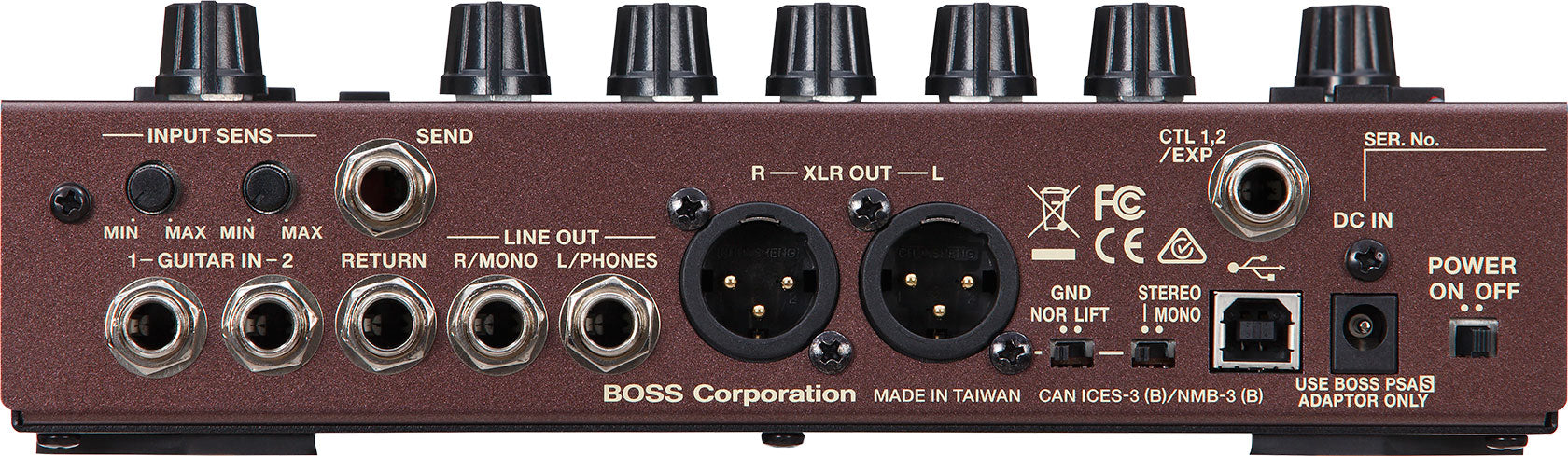

- Connectors
- GUITAR IN 1,2 jack: 1/4-inch phone type
SEND: 1/4-inch phone type
RETURN: 1/4-inch phone type
XLR OUT L, R connectors: XLR type
LINE OUT L/PHONES, R/MONO jacks: 1/4-inch phone type
EXP/CTL1,2 jack: 1/4-inch TRS phone type
USB COMPUTER port: USB type B
DC IN jack - Power Supply
- AC adaptor
Alkaline battery (AA, LR6) x 6 - Current Draw
- 300 mA
- Expected battery life under continuous use
- Alkaline battery: Approx. 6 hours
*These figures will vary depending on the actual conditions of use. - Accessories
- Owner's manual
Leaflet "USING THE UNIT SAFELY"
AC adaptor - Options (sold separately)
- Expression Pedal: EV-30, FV-500H/L, Roland EV-5
Footswitch: FS-5U
Dual Footswitch: FS-6, FS-7 - Size and Weight
- Width
- 217 mm
8-9/16 inches - Depth
- 161 mm
6-3/8 inches - Height
- 65 mm
2-9/16 inches - Weight (including batteries)
- 1.3 kg
2 lbs 14 oz - * 0 dBu = 0.775 Vrms
Boss

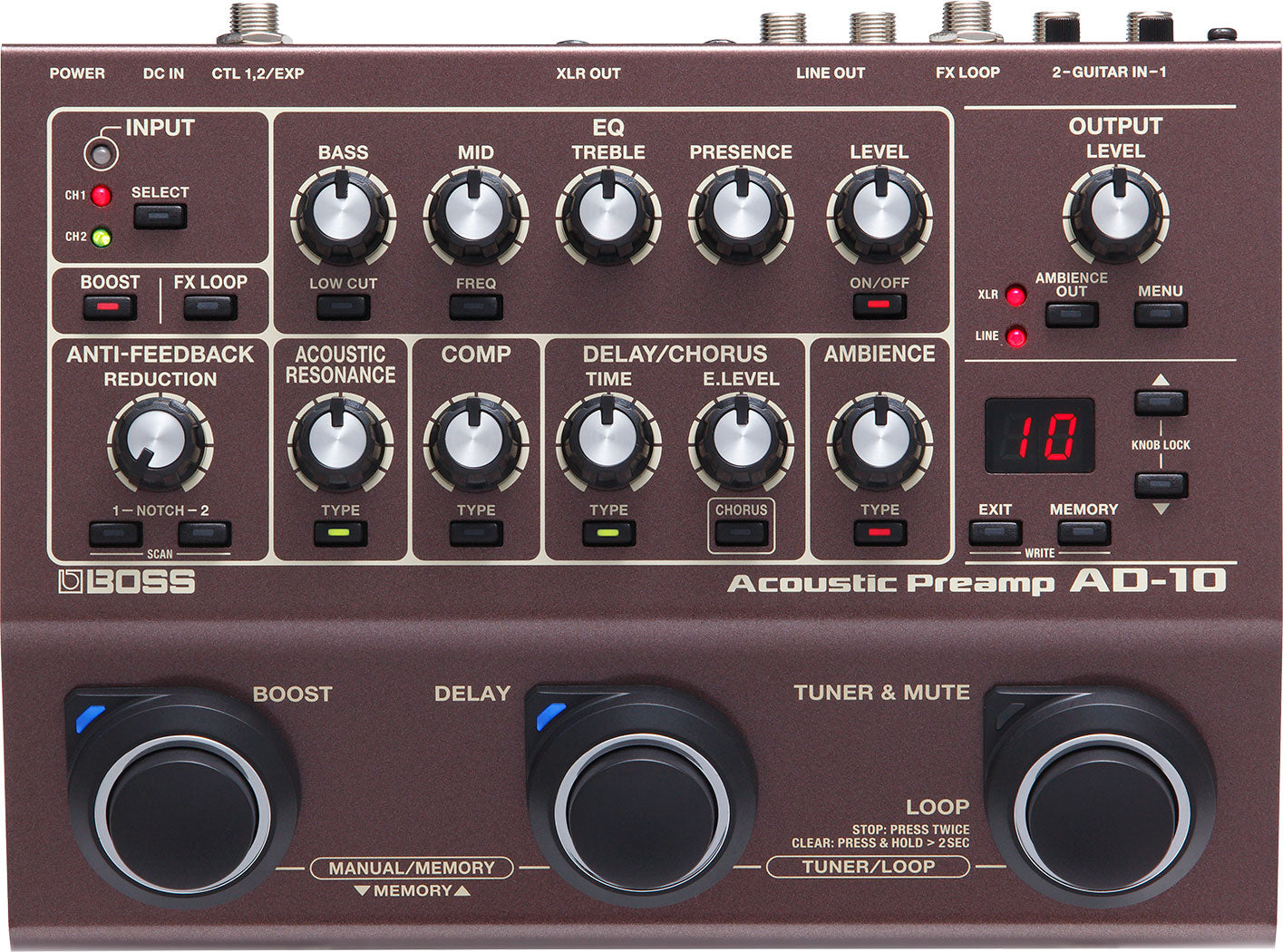

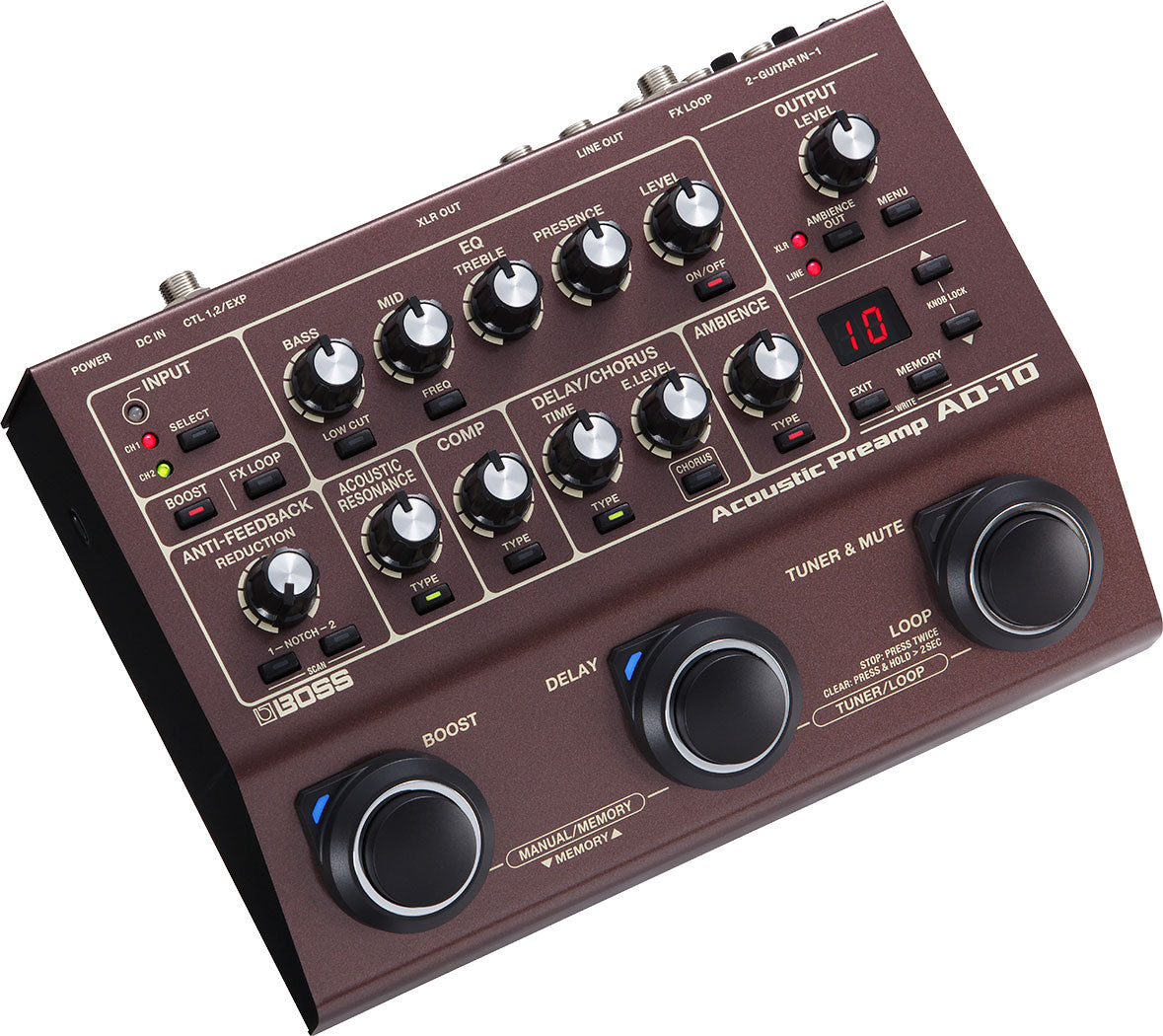

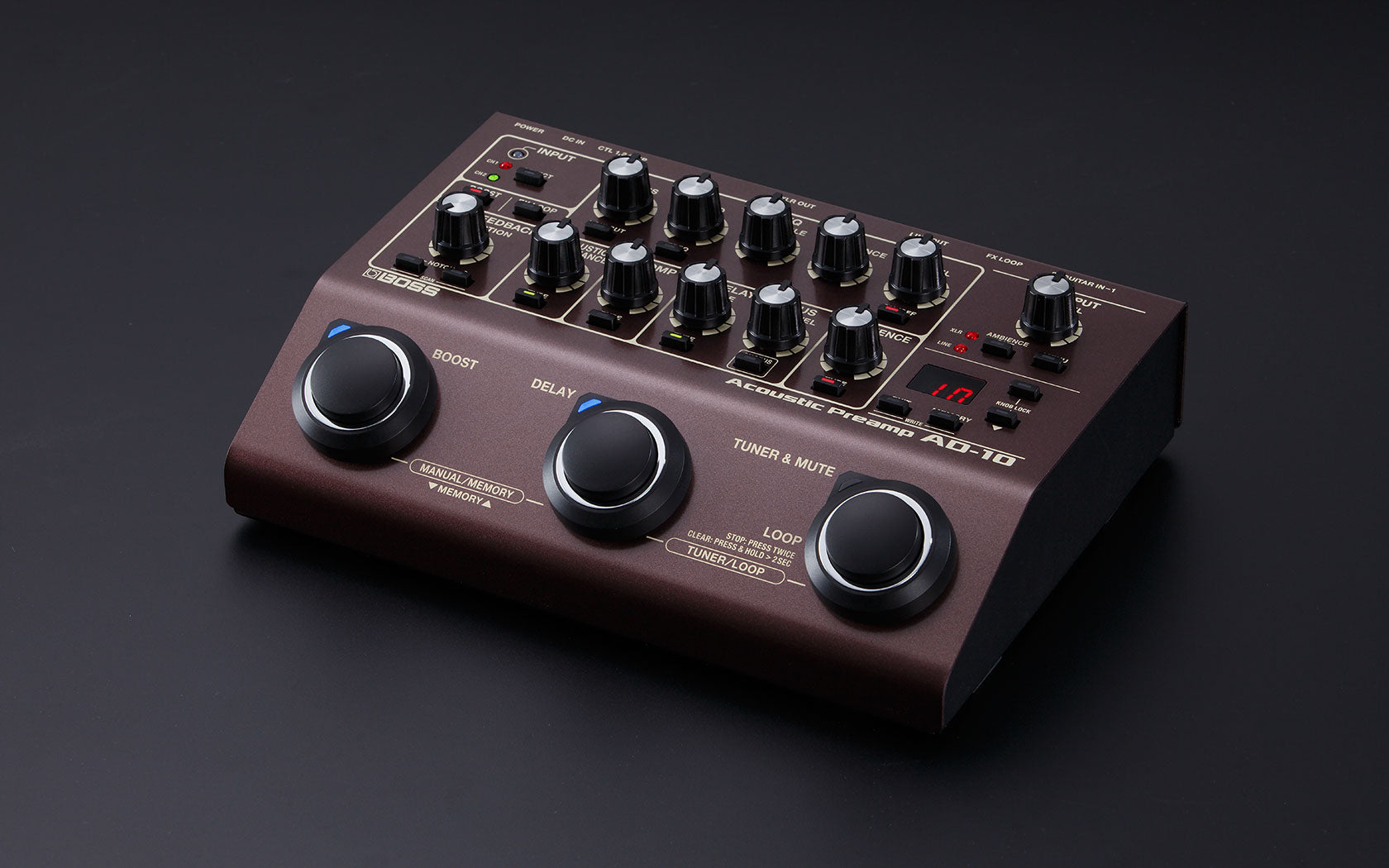

Boss AD-10 Acoustic Preamp Guitar Pedal
Boss AD-10 Acoustic Preamp Guitar Pedal
Couldn't load pickup availability
Advanced Tone Tools for Serious Acoustic Players
Anyone who plays an amplified acoustic guitar on stage knows what a challenge it is to get a sound that’s as inspiring as playing the instrument acoustically. The AD-10 is your solution to this age-old problem, offering advanced sound tools that enable you to achieve rich, natural acoustic tones every time you perform. At its core, the AD-10 is a fully featured, dual-channel acoustic preamp/DI pedal with premium audio quality, deep sound-shaping options, and flexible connectivity. On top of that, ambience, chorus, and delay effects are built in, eliminating the need to carry external sound processing.
But the AD-10 takes acoustic preamp design to an all-new level with its standout feature—BOSS’s groundbreaking Acoustic Resonance processing. This advanced tech restores the complex body and string resonances that are lost with most pickup systems, bringing back the expressive, organic vibe that’s so vital to the acoustic experience. And the features keep on coming, with transparent anti-feedback controls, memories for sound setups, an 80-second looper, USB audio, and much more. Hugely powerful yet simple to use, the compact AD-10 is your all-in-one companion for realizing impressive acoustic tones in every performing environment.
